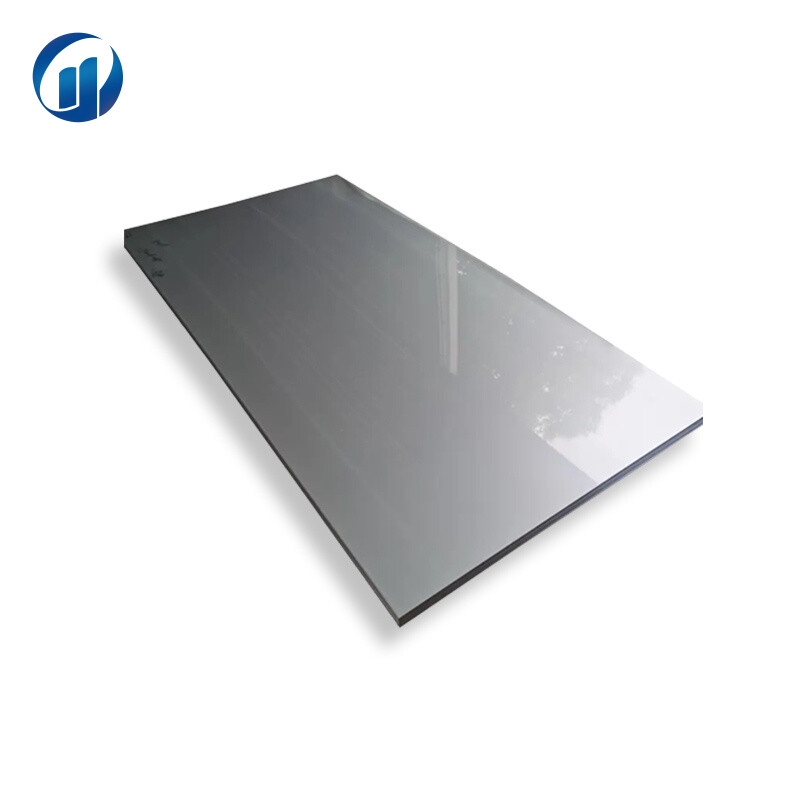

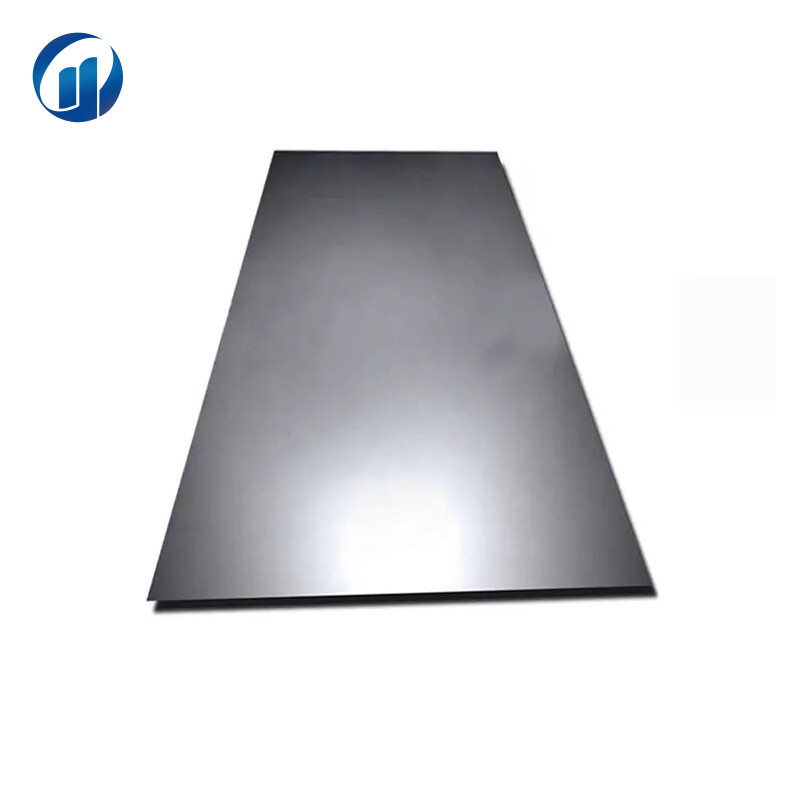

Docol 500DP Dual Phase Steel (DP)

Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase.



Phone

+86 153 7635 6088



service@jtl-steel.com



+86 153 7635 6088

Product Parameters

Mechanical Properties

Steel Grade	Standard	Plating	Test Direction	Yield Strength Rp0.2 (MPa)	Tensile Strength Rm (MPa)	Extension Rate A80( min%)	Minimum Bend Inner Diameter for 90 ° Bend
Docol CR290Y490T-DP	VDA239- 100:2016	UC, GI, GA*, FR	L	290-380	490-600	24	UC 0.0xtGI, GA, FI0.5xt
Docol CR230Y500T- DL	SSAB	UC	T	230-300	500-600	24	0.0xt
Docol CR290Y500T- DP	SSAB	UC	T	290-370	500-600	20	0.0xt

Chemical Composition

Steel Grade	Plating	C (max %)	Si (max %)	Mn(max %)	P (max %)	S(max %)	Al( %)	Cr Mo(max%)	B(max %)	Nb Title(max %)
Docol CR290Y490T-DP	UC	0.10	0.50	1.00	0.025	0.010	0.015-	-	0.10	-
Docol CR290Y490T-DP	GI,GA,ZA	0.14	0.50	1.80	0.050	0.010	0.015-1.0	1.00	0.15	0.005
Docol CR230Y500T- DL	UC	0.08	0.40	1.80	0.025	0.010	0.015-	-	0.10	-
Docol CR290Y500T- DP	UC	0.10	0.50	1.00	0.025	0.010	0.015-	-	0.10	-

Plating

Plating Type	Plating Grade	Standard	Single-sided coating quality, single-point test (g/m2)	Single side thickness, for reference only(μm)
GI	40/40	VDA239-100	40-60	5.6-8.5
GI	50/50	VDA239-100	50-70	7.0-9.9
GI	60/60	VDA239-100	60-90	8.5-12.7
GI	70/70	VDA239-100	70-100	9.9-14.1
GI	85/85	VDA239-100	85-115	12.0-16.2
GI	115/115	VDA239-100	115-155	16.2-21.8
GA	40/40	VDA239-100	40-60	5.6-8.5
GA	50/50	VDA239-100	50-80	7.0-11.3
ZA	95	As required		7-
ZA	130	As required		10-

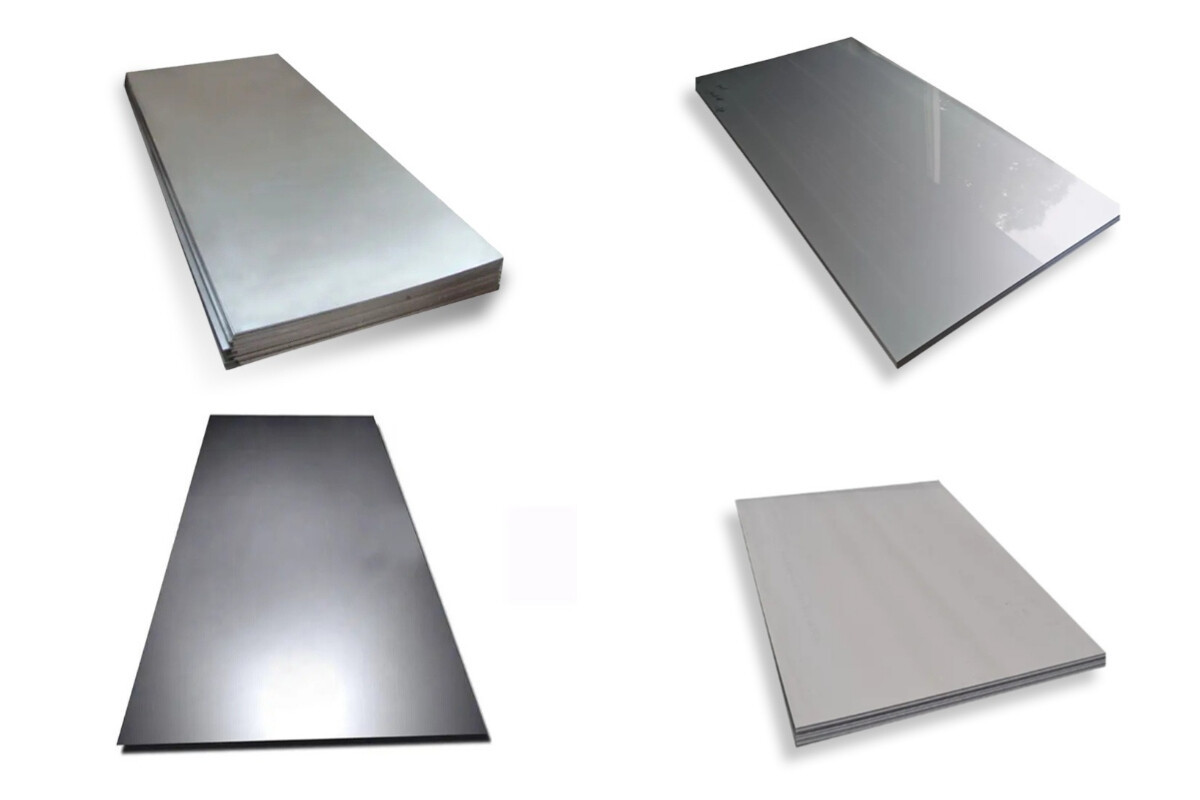

Product Display

Product Application

Product Packaging

Factory Display
